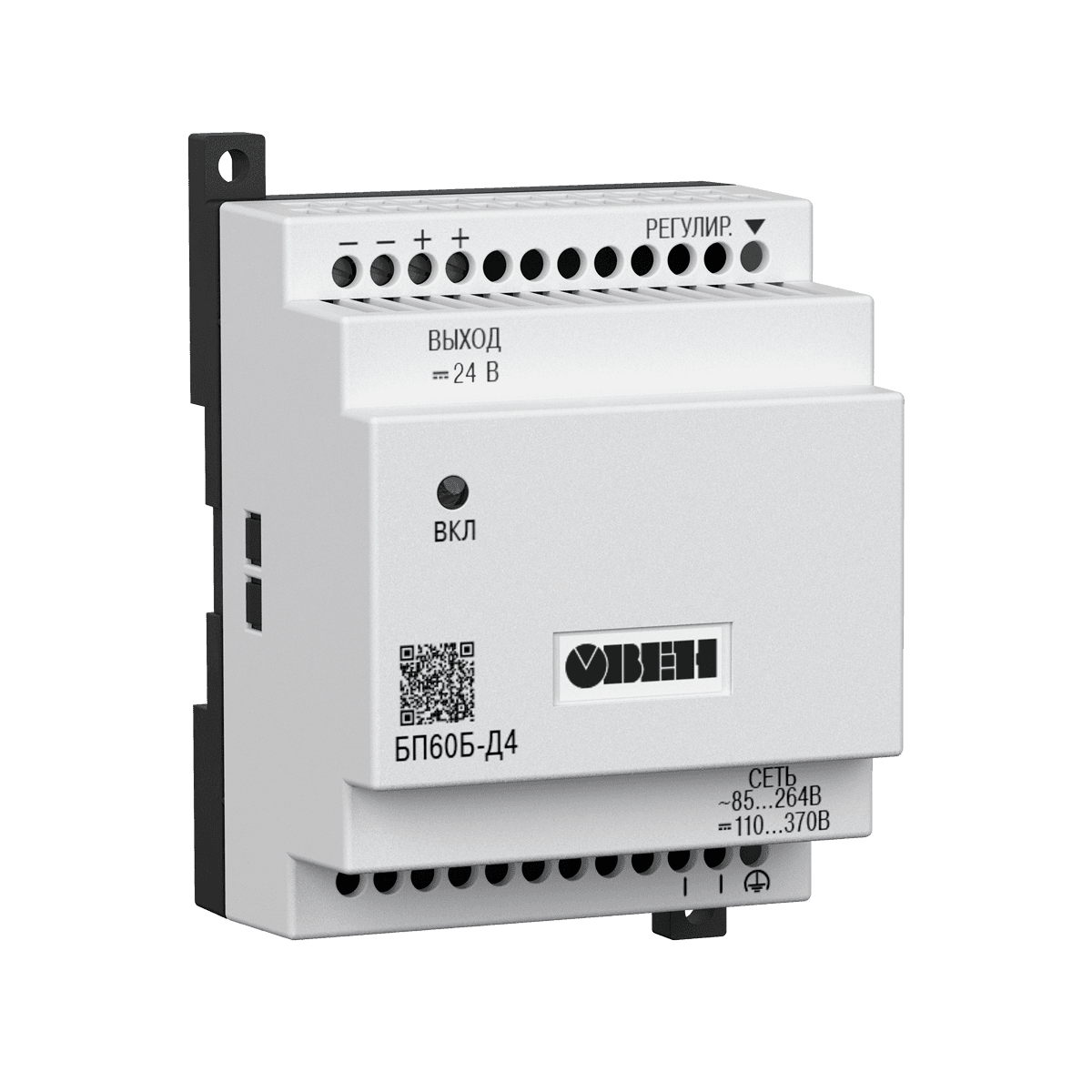

БП60Б power blocks for industrial automation

The OWEN BP15B, BP30B, and BP60B industrial power supplies are designed to supply a wide range of electronic devices, including relay automation, controllers, and more, with stabilized DC voltage.

Maximum output power: 15, 30, and 60 W. Each power supply is available in eight output voltage ratings: 5, 9, 12, 15, 24, 36, 48, and 60 V.

The BP15B, BP30B, and BP60B power supplies are available in plastic enclosures for DIN rail mounting. They are used to build power supply systems of varying complexity, including distributed systems.

Main Functions
Convert AC/DC voltage to stabilized DC voltage.
Stable operation over a wide range of input voltages without degrading the output voltage. Reliable startup of loads with large input capacitance (operator panels, modems, etc.).
Overvoltage and surge protection at the input.
Overload, short-circuit, and overheat protection.
Output voltage adjustment with an internal trimpot within a range of ±8% of the nominal output voltage while maintaining power.
Output voltage presence indicator.
Temperature monitoring and regulation system.
